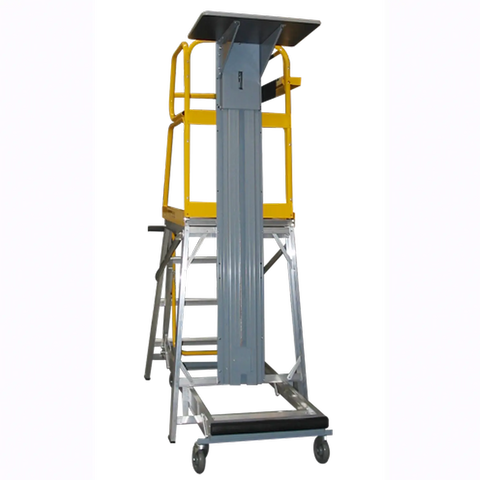

Stockmaster Lift-Truck is an auto-safe lifting platform ladder that enhances safety and efficiency when moving heavy boxes up and down and costs less than any other product that can deliver these benefits.
The Stockmaster Lift-Truk is an auto-safe manual order picking platform ladder designed to remove the need to carry heavy or bulky items while working at height.

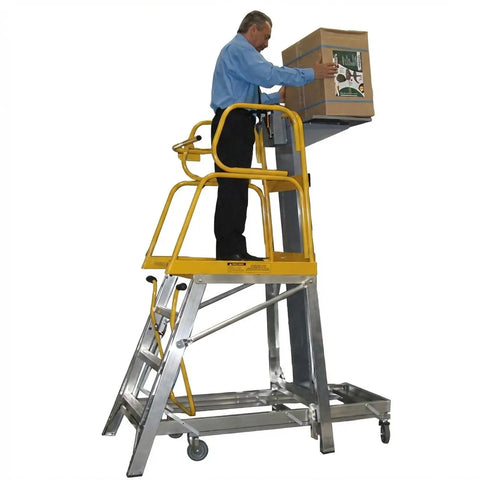

Using a simple, reliable manual winch, items weighing up to 60kg can be raised or lowered to the exact working height and moved in one smooth action. This allows the entire stock picking process to be safely handled by a single operator, without the need for a second person to pass items up or down.
The lift table cannot be accidentally left in mobile mode, helping ensure the ladder remains stable and secure while operators are working.
By eliminating the dangerous practice of carrying items while climbing, the Lift-Truk helps reduce fatigue, improve workflow, and significantly lower the risk of injury and lost-time incidents in warehouses and retail environments.
Why buyers choose the Lift-Truk
If your team regularly handles cartons, parts or bulky items at height, the Lift-Truk changes how that work is done. Items are lifted mechanically rather than manually, meaning fewer people are needed for the task, less equipment is required, and stock can be picked and moved faster with far less physical effort.
The lift table operates like a manual forklift platform, allowing items to be transferred directly from shelving and transported without needing separate trolleys. This streamlines order picking while improving safety and consistency across shifts.

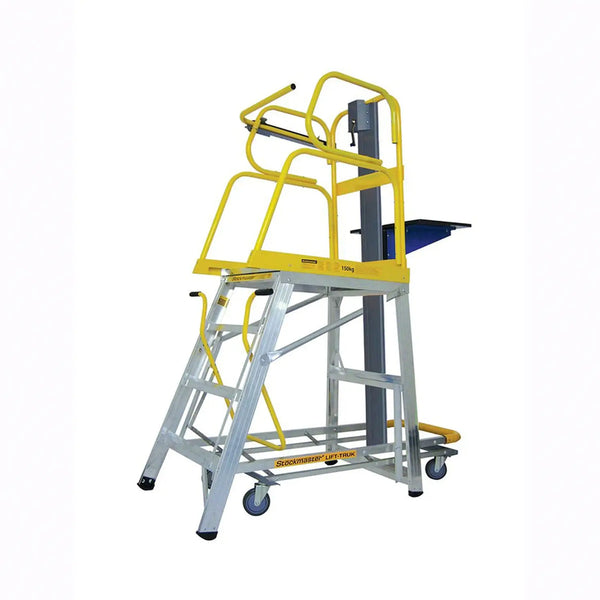

Also Available: the Lift-Truk PRO model adds a fully automatic closing gate and side access gate which is not included with this standard model.
Key Features

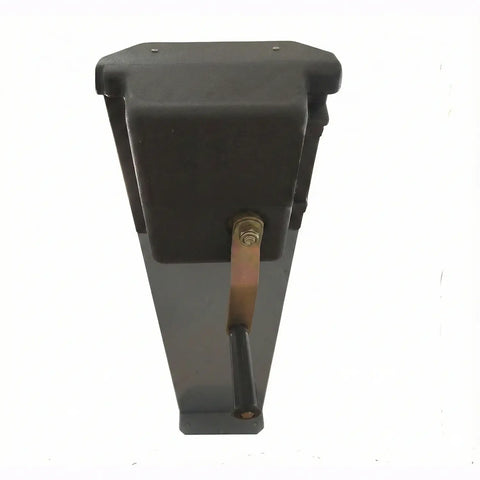

- Manual lift table with winch: Lift and lower items up to 60kg smoothly and safely.
- Automatic load braking: The load brakes automatically when the winch handle is released.
- Single-operator use: One person can pick, lower, raise and move stock without assistance.
- Reduces manual handling: Eliminates carrying heavy or bulky items up or down ladders.
- Low maintenance: No batteries, motors or charging downtime.
- Auto-safe mobile platform: Designed for stable, controlled movement in warehouse environments.
- Modular construction: Built for long service life with replaceable components.
- Australian made: Heavy-duty build quality for daily commercial use.
Lift-Truk Model Sizes, Platform Heights & Working Ranges
| Model Code | Platform Height (mm) | Unit Weight (kg) | Working Range (m) |
|---|---|---|---|
| SM-LT04MP | 1145mm | 62kg | 1.4m – 2.8m |
| SM-LT05MP | 1435mm | 66kg | 1.7m – 3.1m |
| SM-LT06MP | 1720mm | 70kg | 2.0m – 3.4m |
| SM-LT07MP | 2005mm | 74kg | 2.3m – 3.7m |
| SM-LT08MP | 2295mm | 81kg | 2.5m – 3.9m |
| SM-LT09MP | 2580mm | 86kg | 2.8m – 4.2m |
| SM-LT10MP | 2865mm | 90kg | 3.1m – 4.5m |
| SM-LT11MP | 3155mm | 96kg | 3.4m – 4.8m |
| SM-LT12MP | 3440mm | 103kg | 3.7m – 5.1m |
| SM-LT13MP | 3725mm | 109kg | 4.0m – 5.4m |
| SM-LT14MP | 4015mm | 114kg | 4.3m – 5.7m |
Working ranges are a guide only and depend on operator height and task conditions.

Stockmaster Lift-Truck Video
Safety & Compliance
- Australian Standard: AS 1892.1:2018
- European Standard: EN 131 Parts 1 & 2
- USA Standard: ANSI-ASC A14.2
- Load rating: Designed and tested to a 150kg load rating
Lift-Truk vs Lift-Truk PRO
The standard Lift-Truk is ideal for safe, efficient manual order picking where lifting and transporting stock at height is required. For higher-risk environments or frequent stock picking, the Lift-Truk PRO adds a fully automatic closing gate and side access gate, helping protect against accidental step-offs while keeping hands free during entry and exit.
